Azure (AD) SSO Login with UniFed IDP

Step 1:

Step 2:

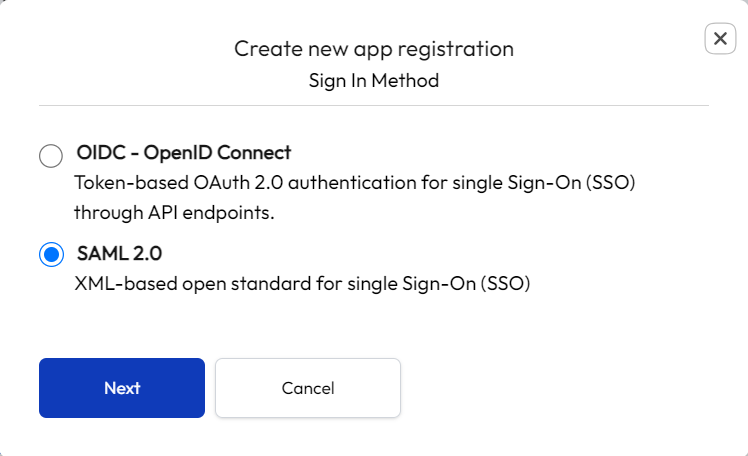

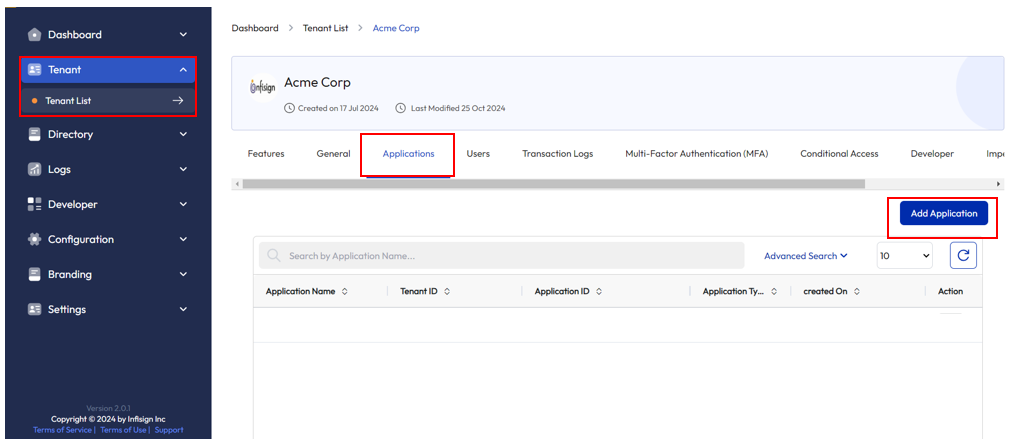

Click "Add Application" A pop-up will appear, prompting you to select the sign-in method

Step 3:

Provide an application name.

Set Name ID as mandatory, specifying "Federation ID" (required for Azure).
Optionally, add a description for the application

Step 4:

Add Service Provider (SP) Metadata We have three options to add metadata to configure the Service Provider application with UniFed (acting as the Identity Provider - IDP):

Upload Metadata File: Upload a metadata file to automatically retrieve the Entity ID of the IDP application.
Use Metadata Link: Enter the Service Provider's metadata link and click Verify to fetch the Entity ID.
Custom Data Entry: Manually enter the Entity ID along with other required fields and click Fetch.

Map UniFed attributes with the Service Provider application’s attributes as needed.

Step 5:

Attribute mapping & Authentication Method setup

Map the UniFed attribute (Federation ID in the schema) with the corresponding Application Attribute (ImmutableId ).
In the authentication setup, select the primary authentication method as Email + OTP to enable login.

Step 6:

Save and Configure IDP Metadata

After entering all required details, click Save.
Complete the setup by configuring UniFed’s IDP metadata with the Service Provider application.

Step 7:

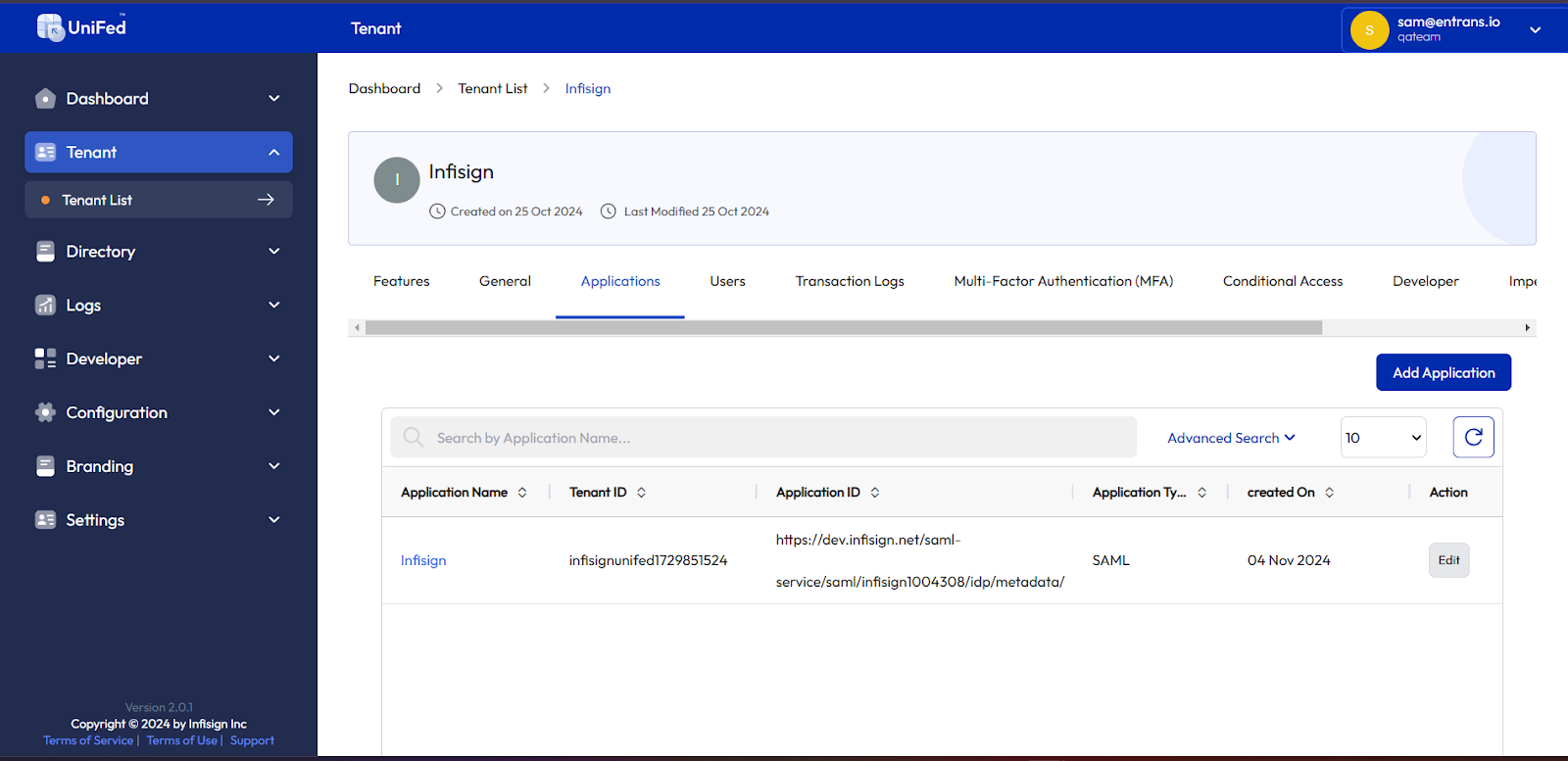

Click on Edit in the application, and the Metadata file will be available. Download it for further use in the application configuration.

Step 8:

Application Configuration - Azure

Navigate to the Cloud Shell option

Step 9:

Click on the option Cloud shell and enter the command to connect for MgGraph

Connect-MgGraph -Scopes "Domain.ReadWrite.All", "Directory.AccessAsUser.All"

Step 10:

After connecting, click on Manage files > Upload.

Step 11:

Upload the Metadata file that was downloaded from UniFed.
Save the following configuration script as a .ps1 file:

Set-ExecutionPolicy -ExecutionPolicy RemoteSigned -Scope CurrentUser -Force
Install-Module Microsoft.Graph -Scope CurrentUser
Import-Module Microsoft.Graph

$domainId = "{your domain.com}"

$xml = [Xml](Get-Content {Upload File name downloaded from UniFed}.xml)

$cert = -join $xml.EntityDescriptor.IDPSSODescriptor.KeyDescriptor.KeyInfo.X509Data.X509Certificate.Split()
$issuerUri = $xml.EntityDescriptor.entityID
$signinUri = $xml.EntityDescriptor.IDPSSODescriptor.SingleSignOnService | ? { $_.Binding.Contains('Redirect') } | % { $_.Location }
$signoutUri = "{Signout URL downloaded from UniFed Metadata File}"
$displayName = "Name to Display"
Connect-MGGraph -Scopes "Domain.ReadWrite.All", "Directory.AccessAsUser.All"

$domainAuthParams = @{
  DomainId = $domainId
  IssuerUri = $issuerUri
  DisplayName = $displayName
  ActiveSignInUri = $signinUri
  PassiveSignInUri = $signinUri
  SignOutUri = $signoutUri
  SigningCertificate = $cert
  PreferredAuthenticationProtocol = "saml"
  federatedIdpMfaBehavior = "acceptIfMfaDoneByFederatedIdp"
}

New-MgDomainFederationConfiguration @domainAuthParams

Step 12: Run the PowerShell Script

After uploading the file, run the script with the following command

./{Name of the script file save in the previous step}.ps1

once the script is executed verify the integration process.

Step 13:

Use the following command to verify the configuration

Get-MgDomainFederationConfiguration -DomainId {your domain.com} |fl
