SAML 2.0 Configuration for LangSmith to Infisign

STEP 1:

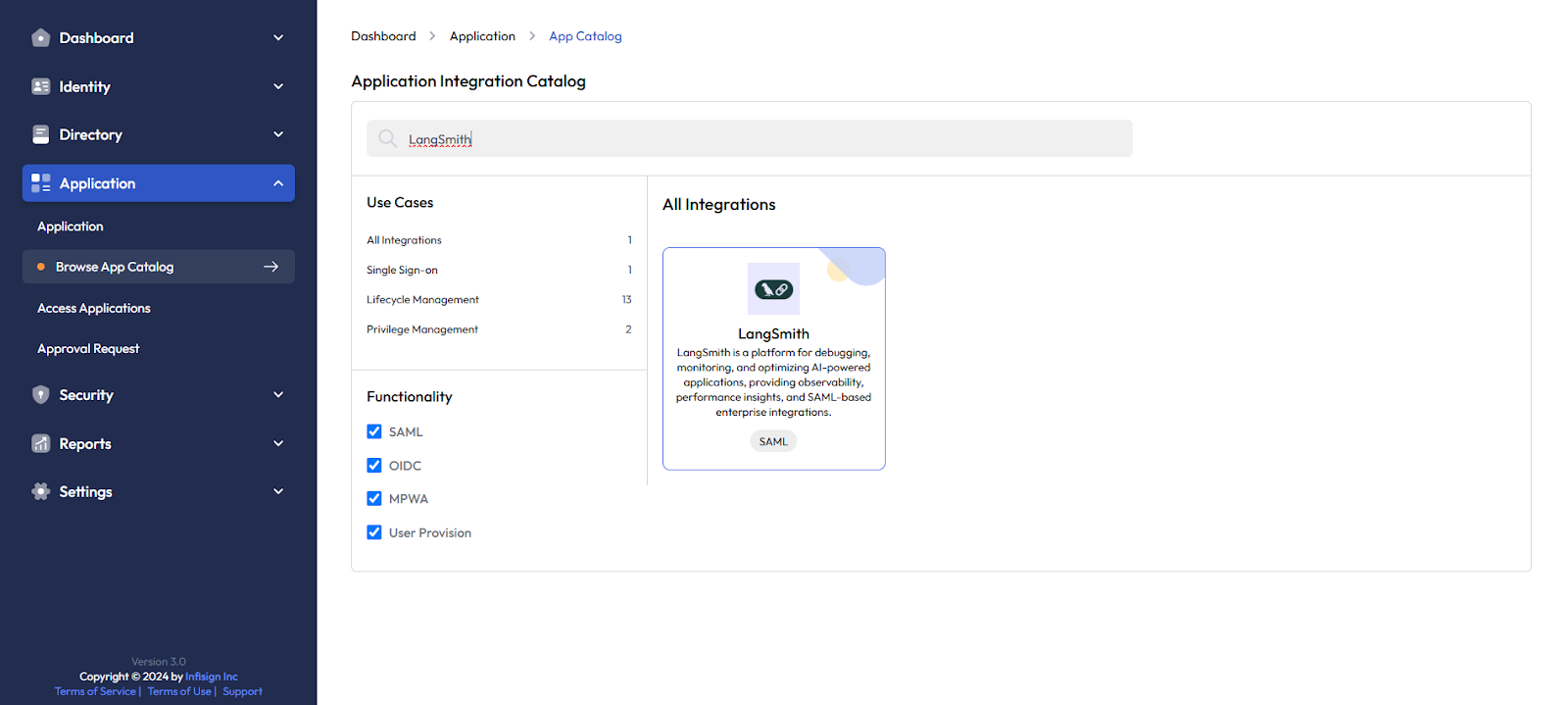

      Sign in to Infisign with the Admin Login Credentials. Now in the Dashboard Screen, Click on the Application > Browse App Catalog page will direct you to the Browse App Integration Page and select LangSmith.

STEP 2:

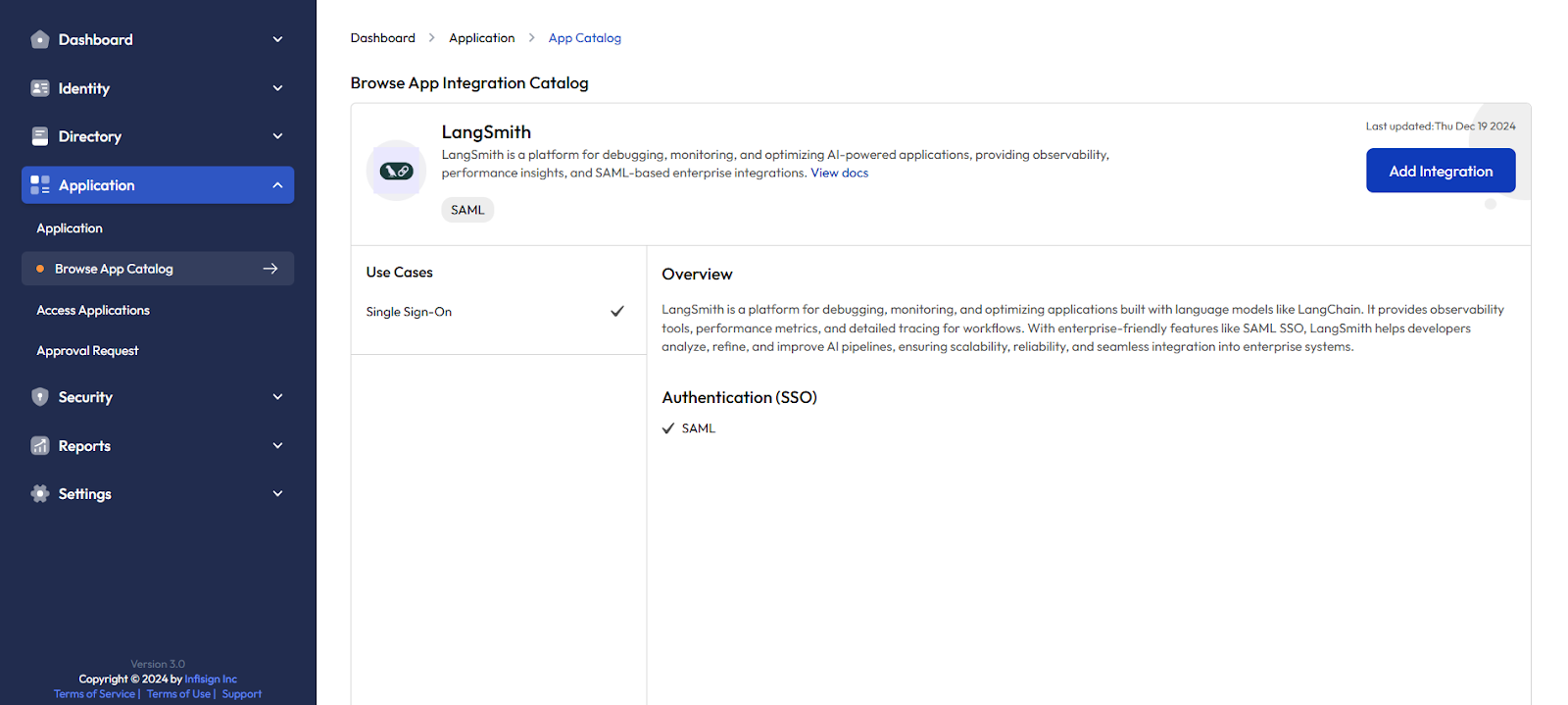

Click on LangSmith to proceed with the Application Integration.  Once clicked and proceeded, you will be directed to the Zendesk Integration page here click the “Add Integration” button to proceed.

STEP 3:

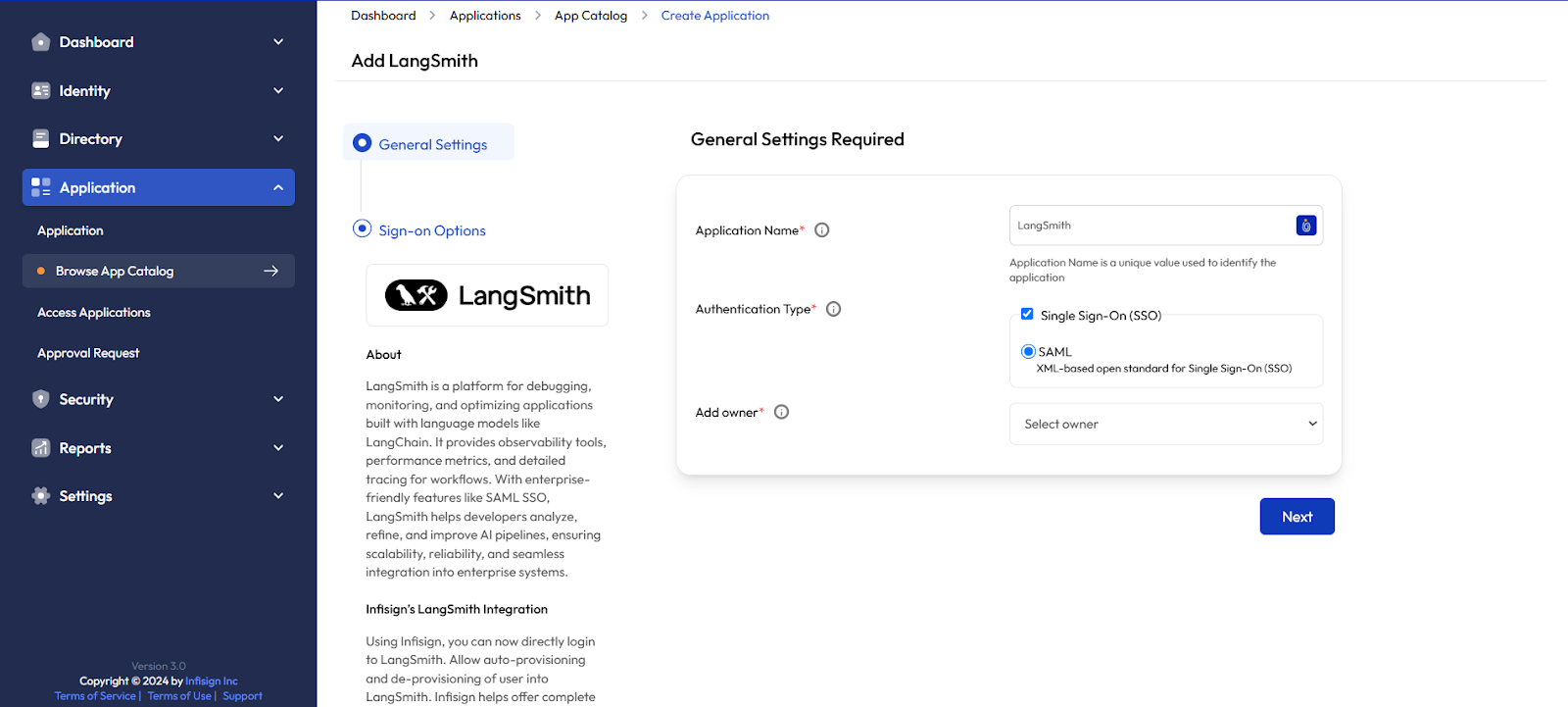

Enter the Application Label Name and select SAML then Click Next. This will direct you to the Sign-on option page.

STEP 4:

  Enter the MetaData URL and APPLogin URL then click Generate Xml

STEP 5:

Configuring SAML in LangSmith

• Log in to LangSmith: Go to the LangSmith website and log in with your admin credentials.
• Access SAML Configuration: Go to Settings -> Members and roles -> SSO Configuration
• Enter IdP Details: Paste the MetaData Url of infisign [ https://app.infisign.net/saml-service/saml/{YOUR TENTANT ID}/idp/metadata/  ]
• Select the Default workspace role and Default workspaces. New users logging in via SSO will be added to the specified workspaces with the selected role.
• Get SP (Service Provider) Details:

SAML Login URL: LangSmith will provide you with the SAML login URL. This is the URL where users should go to initiate the SSO login.

MetaDataURL (EntityID URL): - https://auth.langchain.com/auth/v1/sso/saml/metadata
